Applicability:
Commonly used to transfer oil-base and water-base fluid to conduct hydraulic power transmission
Nominal Inside Diameter:
6.3mm~51mm

Working Pressure Range: 8MPa~35MPa
Product Mix:
Hose Lining: Artificial rubber fabricated, featuring oil-resistant
Hose Reinforcement: 1~2 layers by braided steel wires
Hose Cover: Artificial rubber constructed, featuring oil-resistant, abrasion-resistant, weatherproof and anti-aging
Temperature Range:
-40°C~100°C
Hose Assembly:
Standard types, and/or particular types of couplings available according to the customers’ specific requirements
Reference Standard:
SAE100, SAE100J517, SAE100R1, SAE100R2, SAE100R12, SAE100R13,DIN2002-1SN, DIN2002-2SN

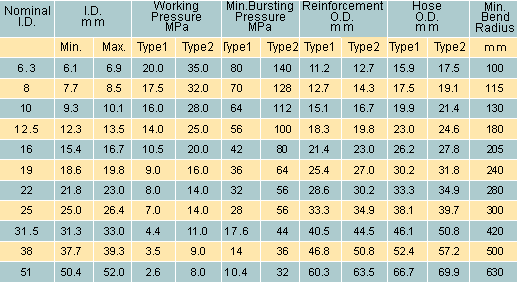

Technical Specifications
