Applicability:
Commonly used to transfer oil-base and water-base fluid to conduct hydraulic power transmission
Nominal Inside Diameter:
6.3mm~51mm
Working Pressure Range:
16.5MPa~45MPa
Product Mix:
Hose Lining: Artificial rubber fabricated, featuring oil-resistant
Hose Reinforcement: 2~6 layers by braided steel wires
Hose Cover: Artificial rubber constructed, featuring oil-resistant, abrasion-resistant, weather-
proof and anti-aging
Temperature Range:
-40°C~100°C
Hose Assembly: Standard types, and/or particular types of couplings available according to the customers’specific requirements

Reference Standard:
SAE100, SAE100J517, SAE100R1, SAE100R2, SAE100R12, SAE100R13,DIN2002-1SN, DIN2002-2SN

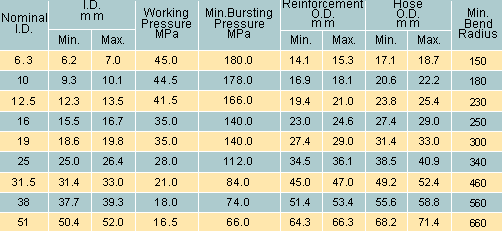

Technical Specifications
